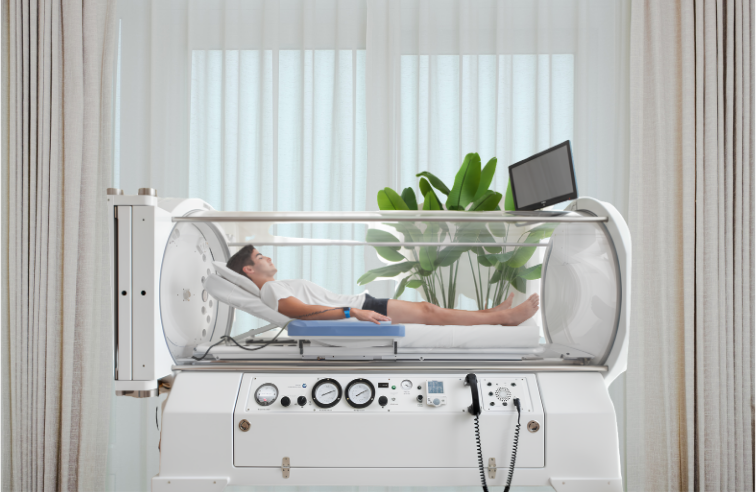

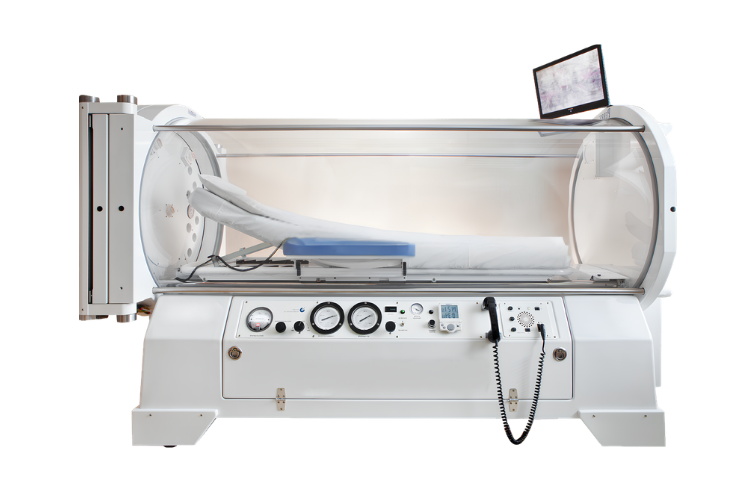

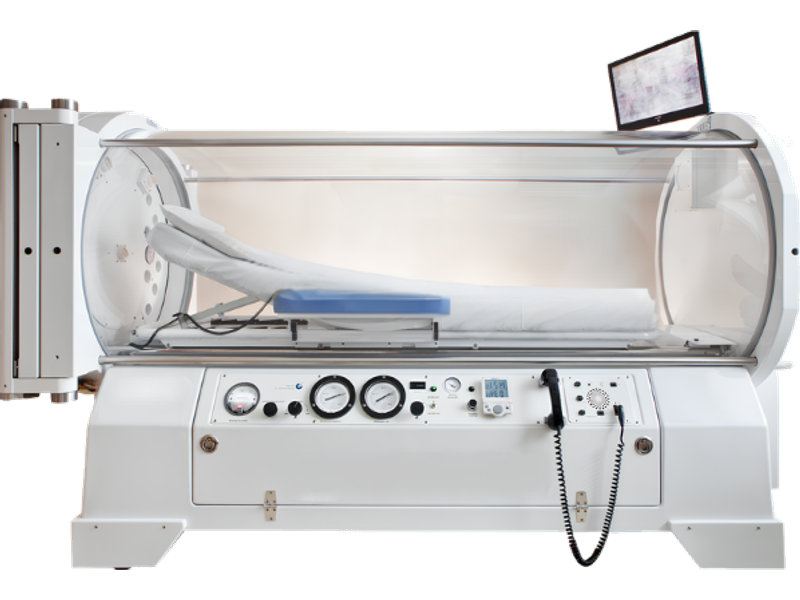

HCD Verta series v8 Mono Hyperbaric Oxygen Therapy Chamber

The HCD Verta Series v8 Mono Hyperbaric Chamber is a premium monoplace hyperbaric oxygen therapy system designed for clinical environments that demand comfort, capacity, and professional-grade performance. Features a true 36-inch internal diameter, giving patients a larger, more open treatment space compared to smaller chamber systems.

This Mono chamber is engineered to improve the patient experience with a cool, quiet treatment compartment, patient-controlled temperature, and an extra-wide adjustable stretcher certified for patients up to 700 lbs. The larger chamber design helps create a more comfortable treatment setting, especially for patients who may experience confinement anxiety in smaller systems.

For providers, the HCD Verta series v8 Mono Hyperbaric Chamber delivers dependable clinical functionality with an intrinsically safe two-way communication system, multiple gurney adjustment positions, and professional building-service compatibility for healthcare facility installation.

Key Features

• True 36-inch internal diameter chamber design

• Large, patient-friendly treatment compartment

• Cool and quiet interior environment

• Patient-controlled temperature

• Adjustable stretcher certified up to 700 lbs.

• Extra-wide stretcher with patient safety handrails

• Multiple gurney adjustment positions: 15°, 25°, 35°, 45°, 55°, and 57½°

• Intrinsically safe two-way communication system

• Optional 19-inch flat screen TV with CD/DVD features

• Maximum operating pressure: 30 psi / 3 ATA

Technical Specifications

• Width: 42 in.

• Length: 105 in.

• Height: 64 in.

• Internal Diameter: 36 in.

• Internal Length: 93 in.

• Internal Volume: 54.8 cu. ft.

• Weight: 2,400 lbs.

• Oxygen Supply Pressure: 50–90 psi

• Peak Oxygen Flow: 40 scfm

• Ventilation Rate: 4.4–13.6 scfm

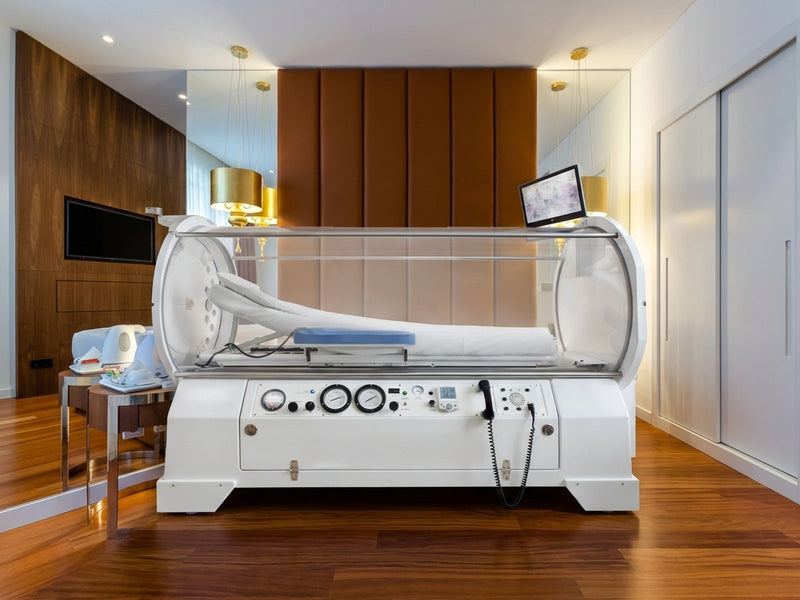

Built for Professional Clinical Use

The HCD Verta series v8 Mono Hyperbaric Chamber is designed for healthcare facilities, physician-based clinics, and professional treatment centers looking for a larger monoplace hyperbaric chamber system. Its spacious chamber design, high-capacity stretcher, and patient-focused comfort features make it a strong option for facilities that want a premium hyperbaric oxygen therapy solution.
